Event Cameras: Revolutionizing Robotics

•

📸 Event cameras - a robotics primer 📸 These unique cameras operate very differently from traditional cameras. Inspired by our eyes, they perform amazingly at high speeds and in challenging light conditions. But are they the future of self-driving cars? Let's dig in ⏬⏬⏬

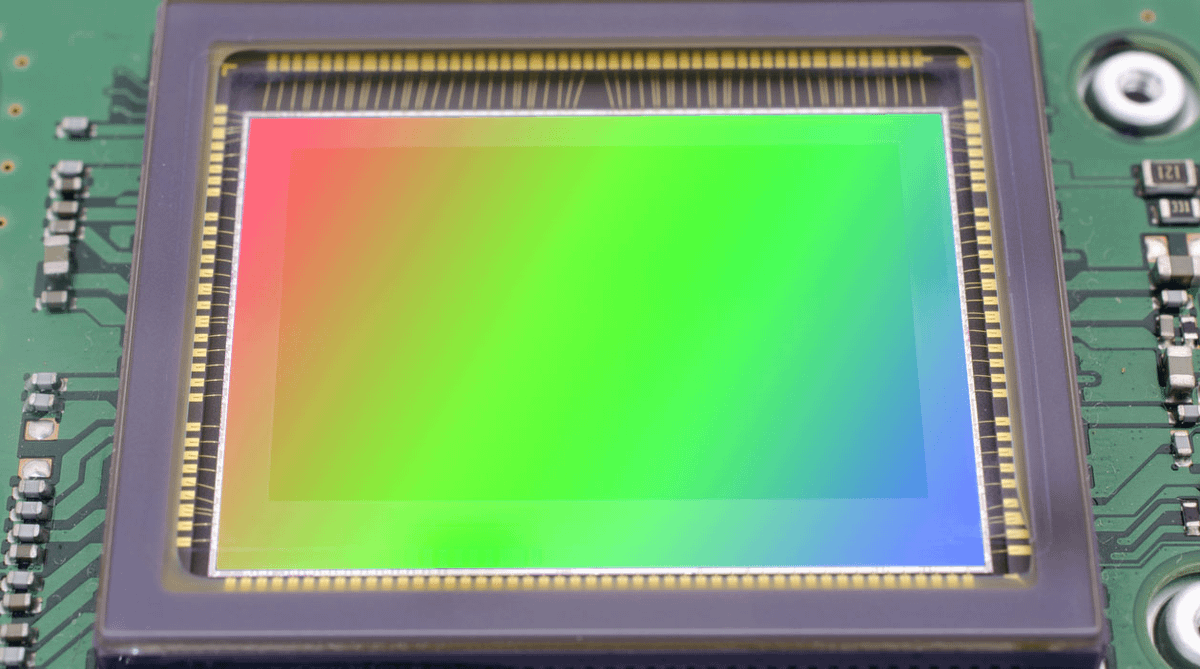

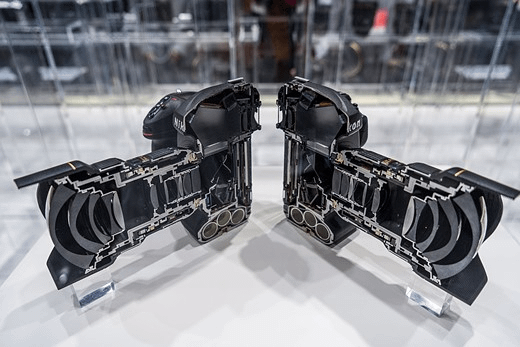

To understand what makes them special, let's first look at how traditional cameras work: • Light enters the camera and is focused onto an image sensor. • The image sensor is made up of millions of light-sensitive pixels. • Each pixel converts light into a digital signal.

This creates two major challenges - 1) Motion blur 2) Dynamic range

1) Motion blur Each pixel accumulates light over a fixed exposure time set by the shutter speed. A shorter exposure period ensures that each pixel captures light from a specific part of the scene and stops moving objects smearing across pixels, reducing motion blur.

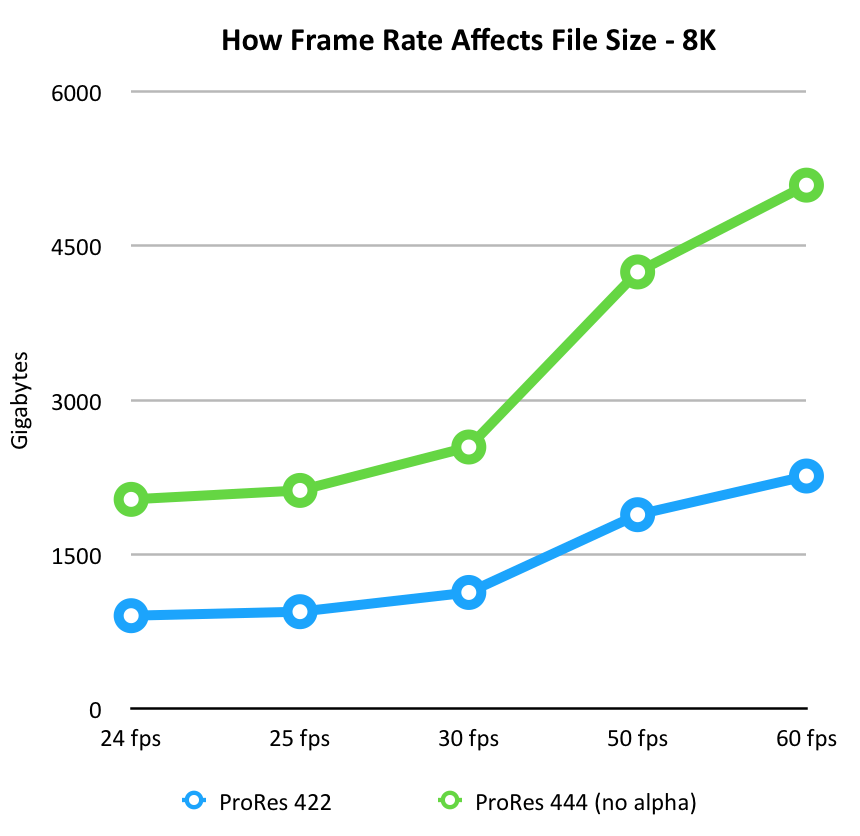

This causes issues in high-speed situations where faster frame rates are required. As frame rate increases so too does data rate. Capturing high-speed motion requires engineers to choose between motion blur and efficiency.

Not ideal for high-speed scenarios like self-driving cars! 🏎️💨 Why this matters for autonomous vehicles: 1. Motion blur affects object detection 2. Milliseconds can be the difference between an accident or not 3. Low latency is crucial for real-time decision-making

Efficiency matters too: • Data efficiency reduces computational load & bandwidth needs • Low power consumption is crucial for electric and autonomous vehicles Traditional cameras aren't great at either. They capture & process ALL pixel data, even in static scenes. 🔋📉

2) Dynamic range Traditional cameras struggle with extreme lighting variations (think bright sunlight vs. dark tunnels). HDR often requires multiple exposures. Each pixel on a camera sensor can only hold a certain number of electrons (well capacity).

Once a pixel reaches its maximum capacity, it can't distinguish any further, setting an upper limit to the brights that can be captured in a scene. The lower end of the darks is set by noise levels that come in low light situations. This creates under & over-exposed images.

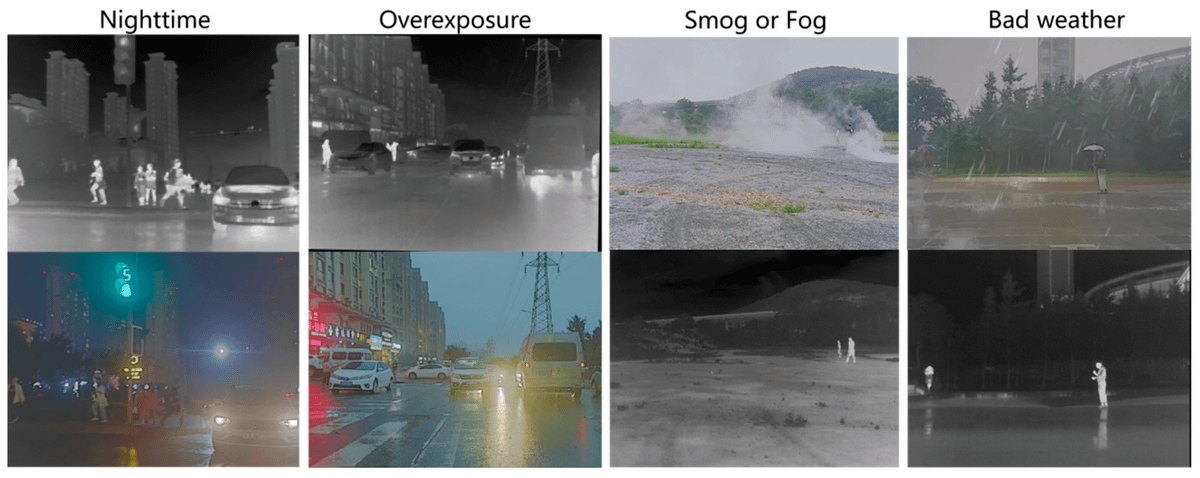

This is a big problem for robust perception in challenging lighting conditions. Why it matters: automotive environments involve extreme lighting variations (bright sunlight, dark tunnels, glare from headlights). Cameras with poor dynamic range struggle to capture detail🌞🌚

Enter the event camera, inspired by the human eye! 👁️ Unlike traditional cameras, our eyes: • Have no fixed "frame rate" • Process information continuously • Focus on detecting changes • Send signals only when changes occur Efficient and sensitive 🧠

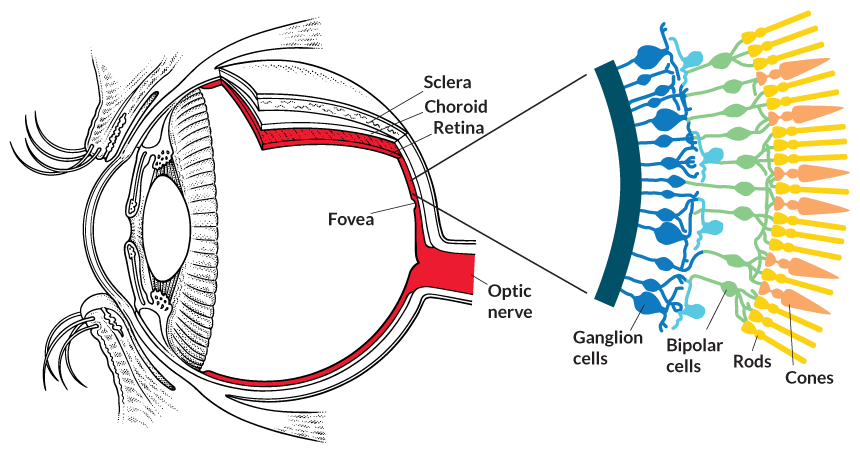

**How Eyes Work:** 1. Photoreceptors convert light to electrical signals. 2. Retinal ganglion cells detect light changes. 3. Only significant changes are sent to the brain. 4. Brain reconstructs scenes from the sparse inputs. Low latency, data-efficient. Nature is pretty smart!

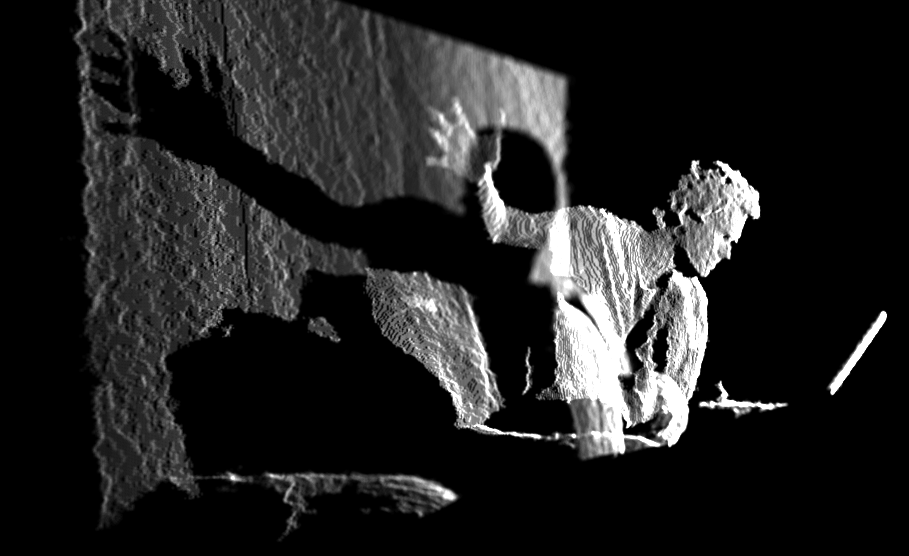

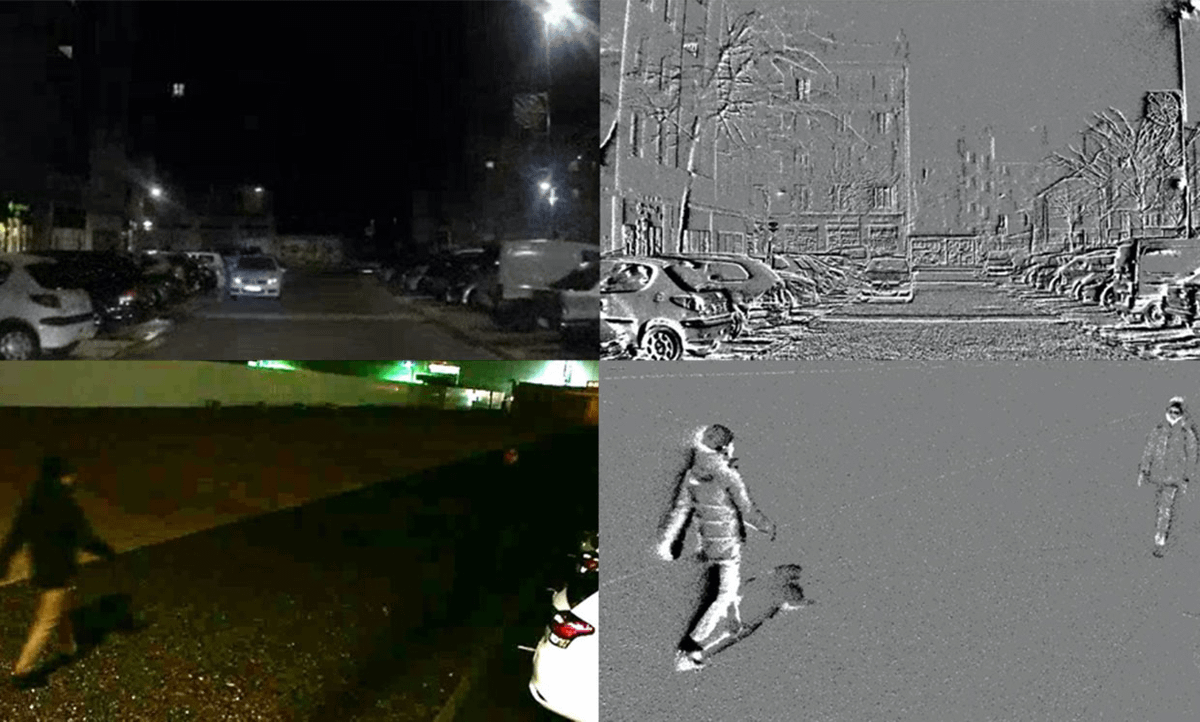

How event cameras work Like the eye, event cameras don't have a shutter and continuously expose pixels to light. Rather than outputting the light collected over a fixed period, they send a signal every time a change in brightness is detected.

Each pixel stores a reference brightness level and continuously compares it to the current brightness level. If the difference in brightness exceeds a threshold, that pixel resets its reference and generates an event: a discrete packet that contains the pixel # and time.

Let's look at three important features in more detail:

1. Continuous response Each pixel can output a response in microseconds, around 1000x+ faster than traditional cameras. This results in ultra-low latency and minimising motion blur.

2. Pixel level response This enables sparse data outputting - significantly reducing data rate & energy usage. It also means that in a scene with both very bright and very dark areas, the camera can capture meaningful information from all parts of the scene simultaneously.

3. Threshold The pixels output when brightness passes a logarithmic threshold, allowing the camera to capture a much wider range of light intensities without saturation.

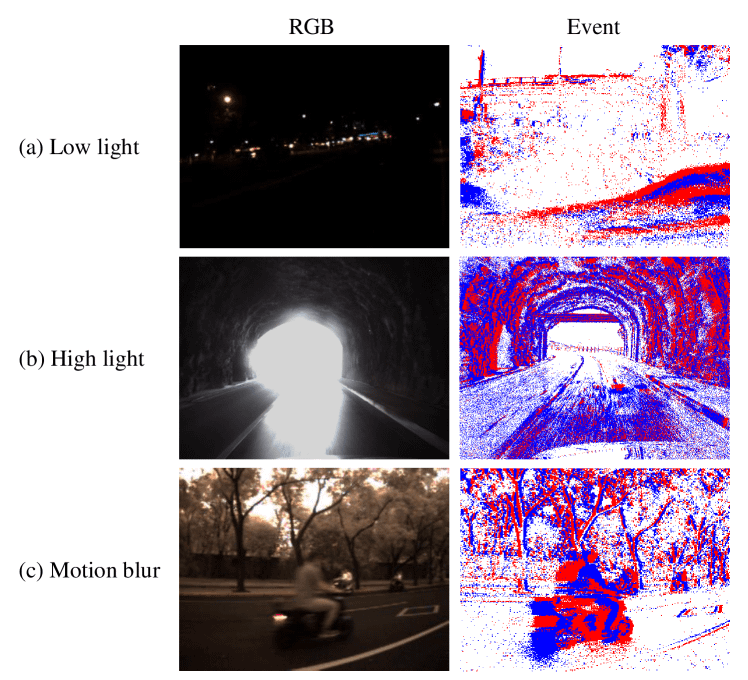

Basically - • Microsecond responsive • Limited motion blur • Data efficient • Great in high dynamic range conditions Excellent for rapid motion and low light - Sounds perfect for self-driving cars, right? 🚗💨

So why aren't event cameras the standard yet? Some critics call them one-trick ponies as they lack the flexibility of traditional cameras. But the real challenge? Niche custom hardware. 🔧

Scale matters: 13.5 billion digital camera sensors are predicted for 2025. That's HUGE! Their ubiquity has driven down the price and created unbelievable pressure to optimise capabilities and processes.

Event cameras? Factors lower with none of the economies of scale. Result: • Much more expensive • Worse functionality: lower resolution, noisier output, etc.

It's not just about hardware. Processes matter too. Lack of scale means - no standardization between providers & no ecosystem. The result: limited supply chain redundancy, limited integration pathways and many algorithms don't work with event data.

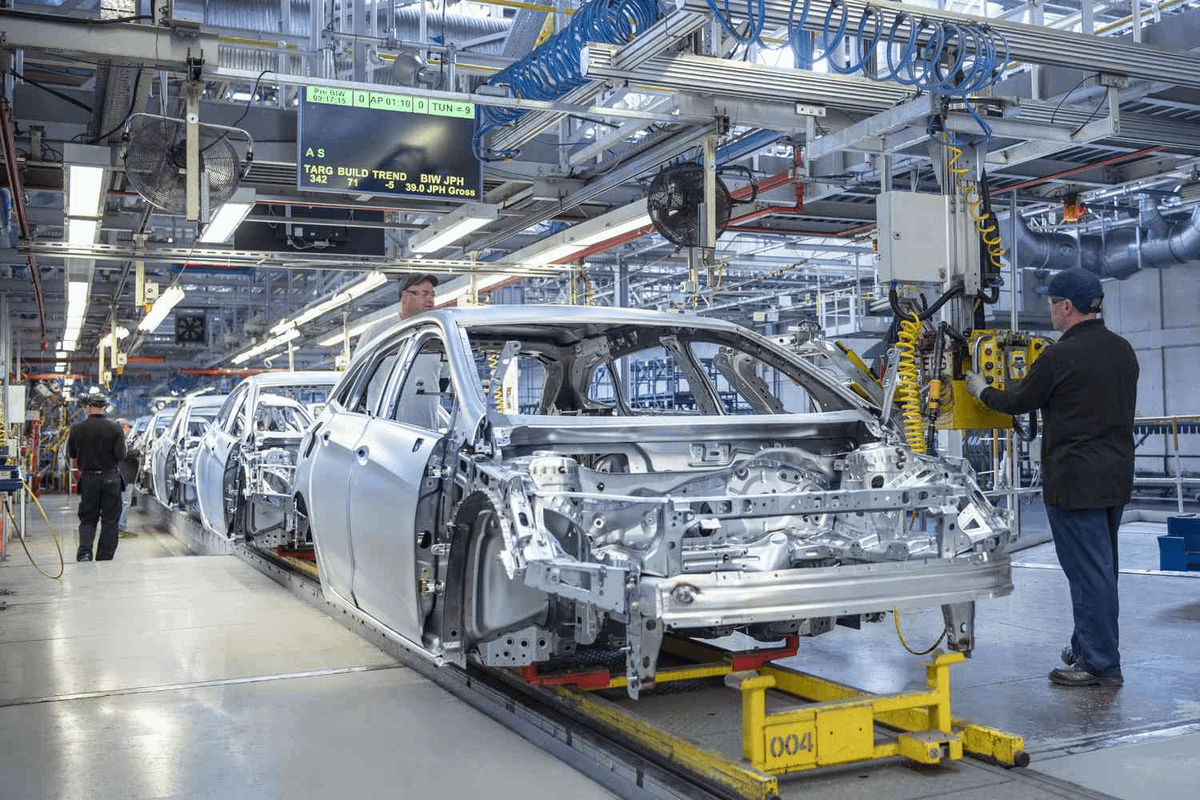

The result? These things are non-negotiable for automotive companies. OEMs are risk-averse. They're slow to adopt new tech like event cameras. Chicken-and-egg: Adoption is needed to accelerate functionality🥚

Traditional cameras piggybacked on the growth of mobile phones. Event cameras need something similar. What will be the killer app that kick-starts their scale?

Will event cameras solve all of autonomy's problems? Probably not. But they're a fascinating approach inspired by nature and it'll be exciting to see how they progress! What do you think? Are event cameras the future of autonomous perception? 🤔
