Cracking Actuator Cost Challenge

•

Actuators eat up 30-50% of a humanoid robot's BOM cost. Mass adoption? Not at these prices. This is one of the most persistent challenges in robotics, but @IMSystemsNL may have cracked the code with a novel drive. To understand it, we need to dive into the world of drives & transmission, with all their demands and trade-offs. Shoutout to @MarwaEldiwiny and @GoingBallistic5 for the original video.

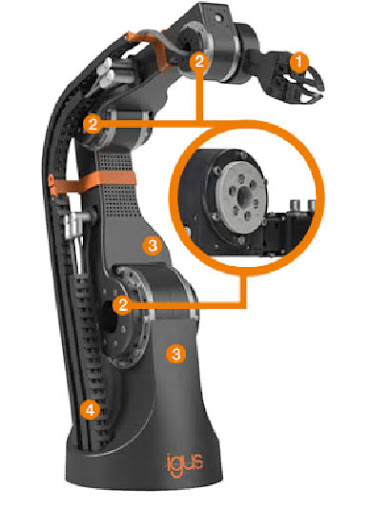

The actuator dilemma that's plagued industrial robotics for 50 years: Electric motors are most efficient at high speeds (5,000-20,000 RPM). But robot joints need slow, controlled movement (~60 RPM max). This forces massive gear reductions (50:1 to 320:1) - and that's where everything breaks down.

Why massive gear reductions suck: - Backlash multiplies: Every tooth adds play - multiply by 50x-320x reduction and your robot can't draw a straight line - Efficiency drops: Each stage loses 2-5% efficiency - Weight explodes: More stages = more mass to accelerate - Back-driveability vanishes: High ratios make manual joint movement impossible - a safety nightmare The bigger the reduction, the worse these problems get.

So, how do engineers solve this? Three dominant approaches: • Planetary gears: Stack multiple stages for high ratios • Harmonic drives: Achieve huge ratios in single stage via flex • Cycloidal drives: Use eccentric motion for compact reduction (Excludes belts, tendon, worm gears, ball screws, fluid) Each solves some problems while creating others.

Planetary gears work like a solar system - central "sun" gear surrounded by "planet" gears inside a ring. Great efficiency (95-98%) but the flaw: tiny gaps between teeth multiply by 50x reduction and your robot can't draw a straight line.

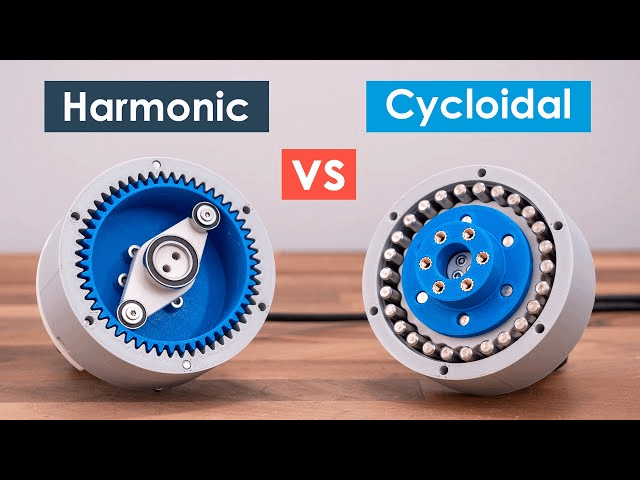

Harmonic drives flex a thin metal cup with an oval cam to create massive reductions in one step. Zero slop, but they cost $1,000-$3,000 each and only 3-4 companies worldwide can make them properly. Supply chain bottleneck.

Cycloidal drives use an off-centre disc that "wobbles" against pins for reduction. Super rigid and strong, but complex to manufacture. You need aerospace-level precision machining.

This is an even bigger problem for humanoids that have even tougher constraints: 1. Safety (must not injure humans during interaction) 2. Cost (sub-$20,000 robot requires ~$500 actuators) 3. Performance (zero backlash, high bandwidth, force transparency, low weight) Current transmissions force trade-offs. Humanoids need all three.

This is why the industry is chasing direct drive - motors directly powering joints with no transmission at all. Direct drive would solve everything: zero backlash, perfect force transparency, infinite stiffness, no gear complexity. It's the holy grail. But no one has cracked it due to motor size and cost constraints. The compromise? Quasi-direct drive (QDD) with low gear ratios (6:1 to 20:1). Good but not perfect.

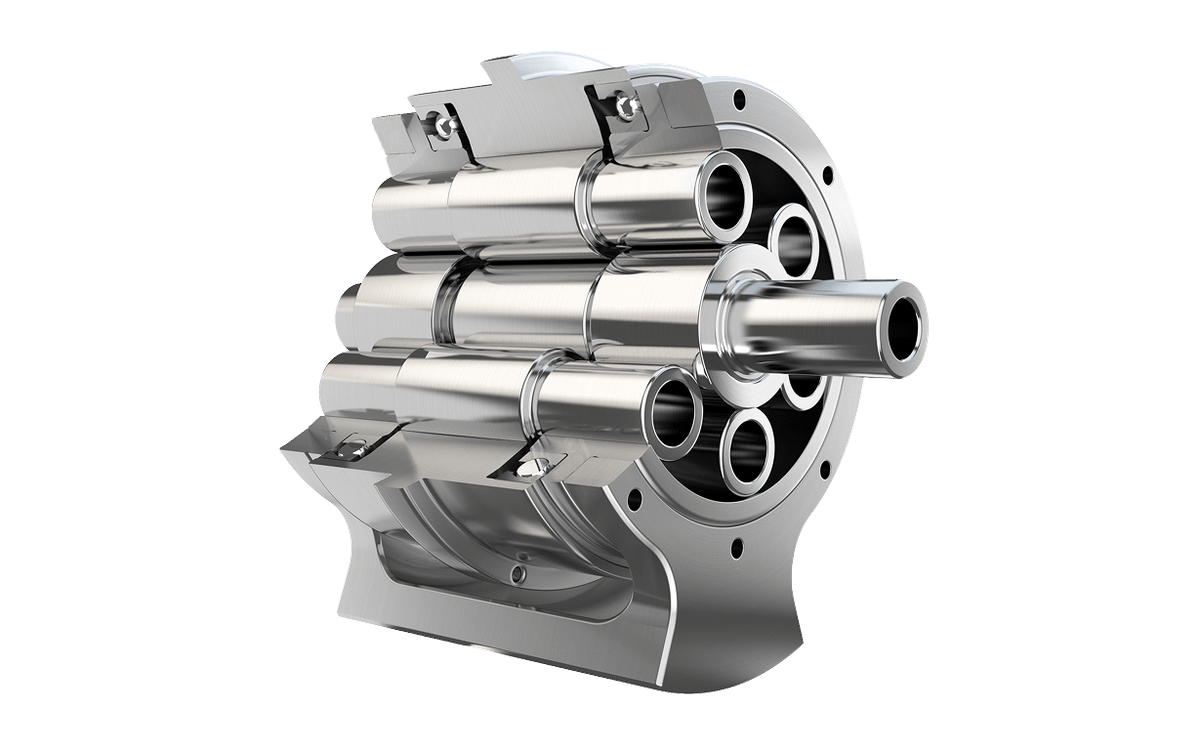

Enter the Archimedes Drive from IMSystems—a departure from gear-based thinking. Instead of metal teeth, they use controlled friction between rolling cylinders under compression. Think: train wheels on tracks, but in a planetary configuration.

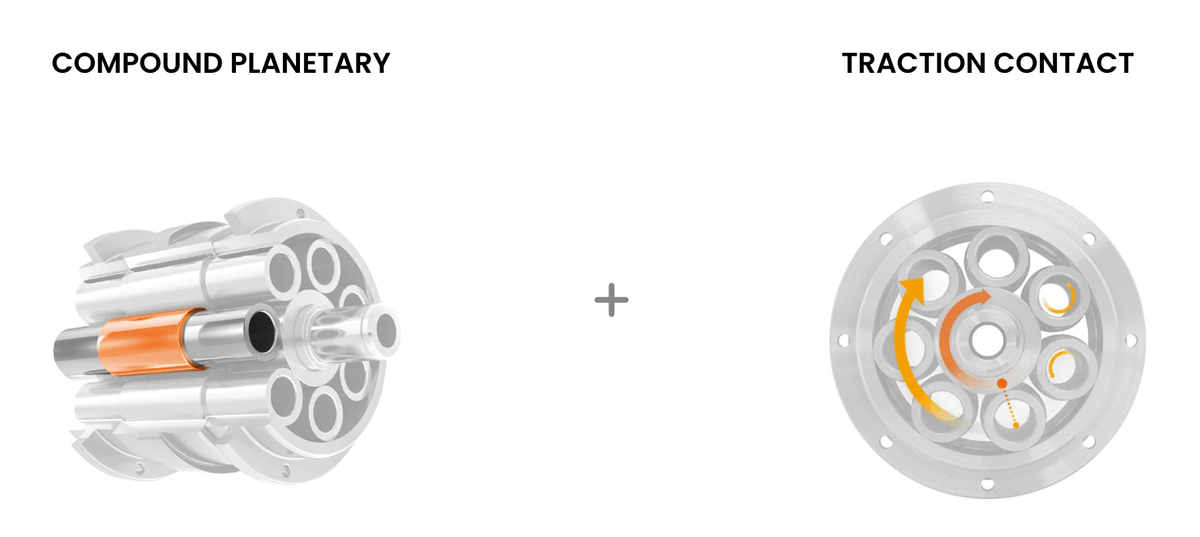

The physics are elegant: • Hollow rolling cylinders replace gears • Pre-compression creates spring-loaded contact • Force transfers through traction, not gear mesh • Variable geometry enables ratios from 6:1 to 100:1+ Think: infinite gear teeth at the microscopic level.

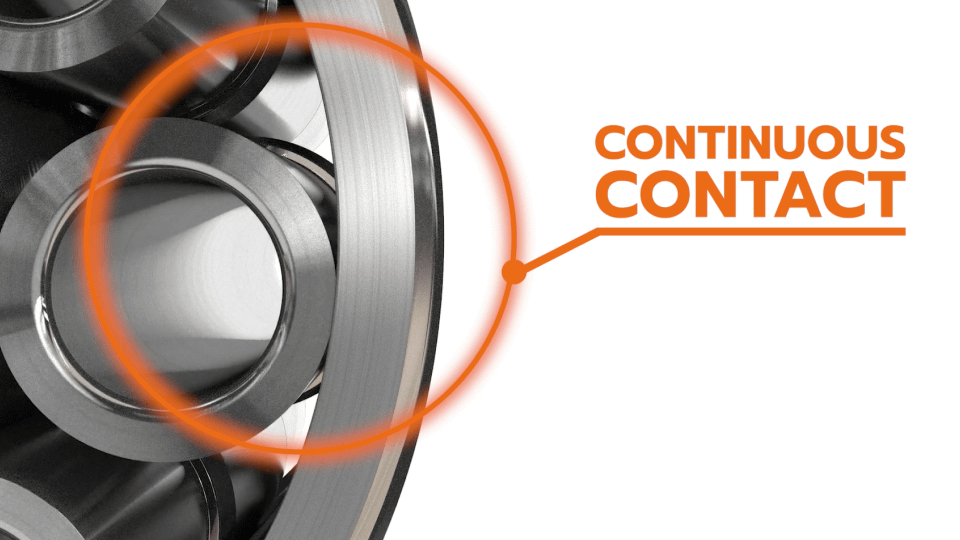

Three breakthrough characteristics: • Zero backlash from continuous rolling contact • Inherent slip protection - overtorque causes slipping, not breaking • Perfect back-driveability for human-safe interaction You can hit it with a hammer and it just slips safely at preset limits.

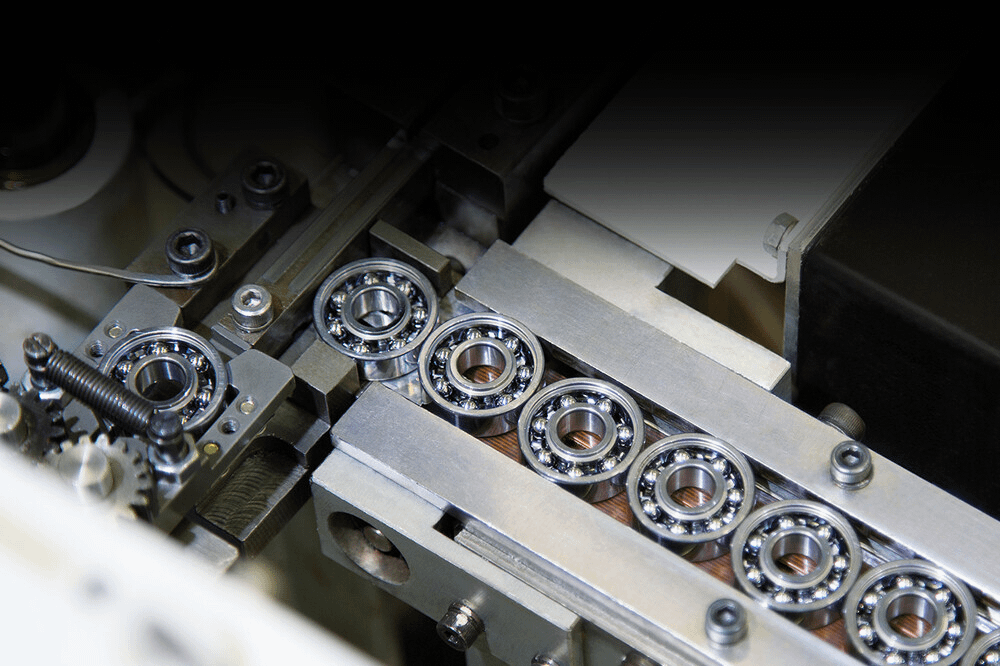

Manufacturing advantages: Traditional gears need specialised grinding equipment ($70K-$100K per tool) with limited suppliers. The Archimedes Drive uses bearing manufacturing - a mature, scalable industry. Early estimates suggest 50-80% cost reduction vs harmonic drives.

The counterintuitive insight: what made this drive "unsuitable" for industrial robots makes it ideal for humanoids. @IMSystemsNL spent 10 years being "too early" - industrial robots saw slip as a liability. Now humanoid companies specifically request slip protection for safety. Yesterday's weakness became today's advantage.

Prediction: Within 5 years, two distinct ecosystems: • Industrial: High-ratio drives optimised for precision • Humanoid: Low-ratio friction drives optimised for safety and cost The Archimedes Drive represents a step in this direction.
